Description

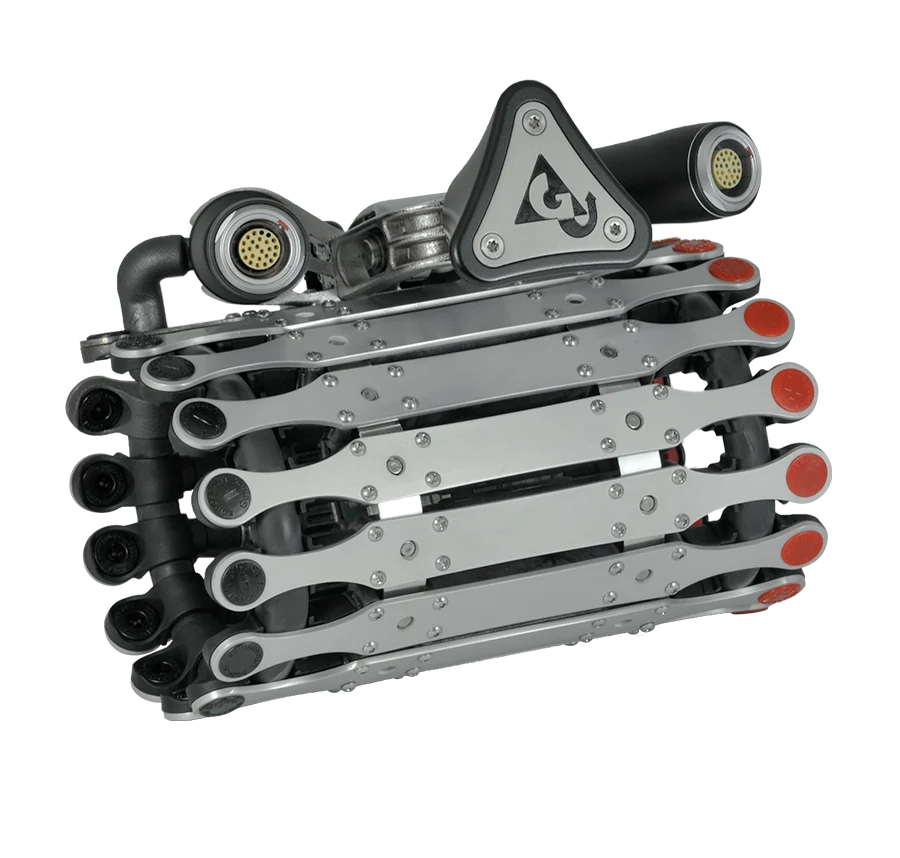

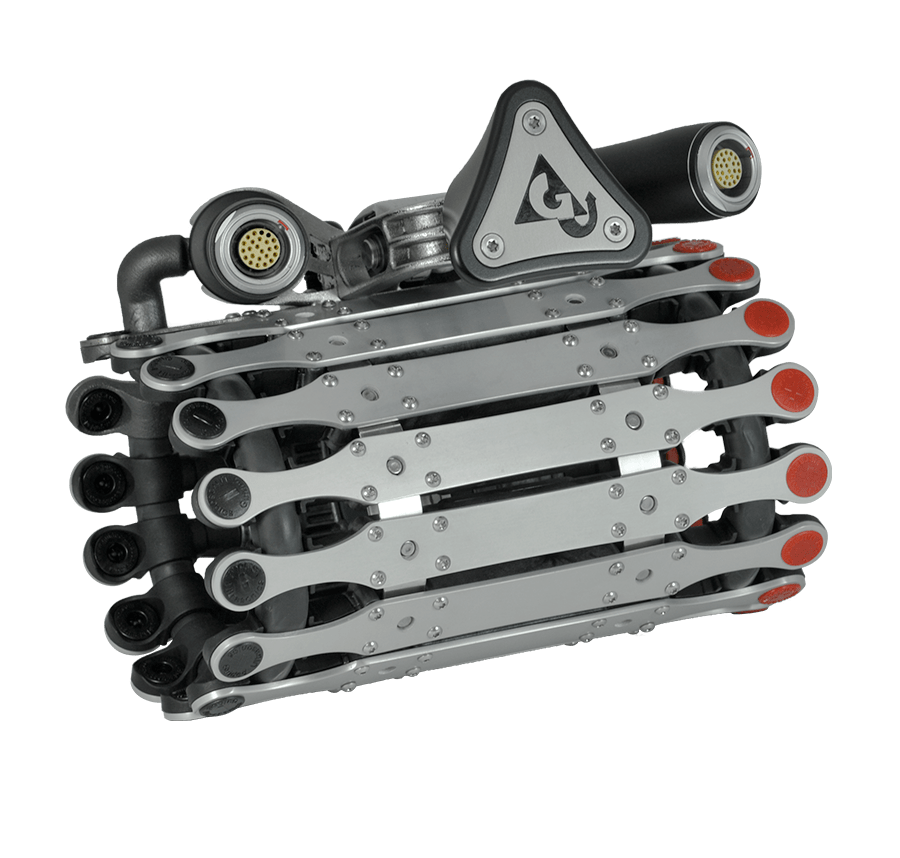

Slinky

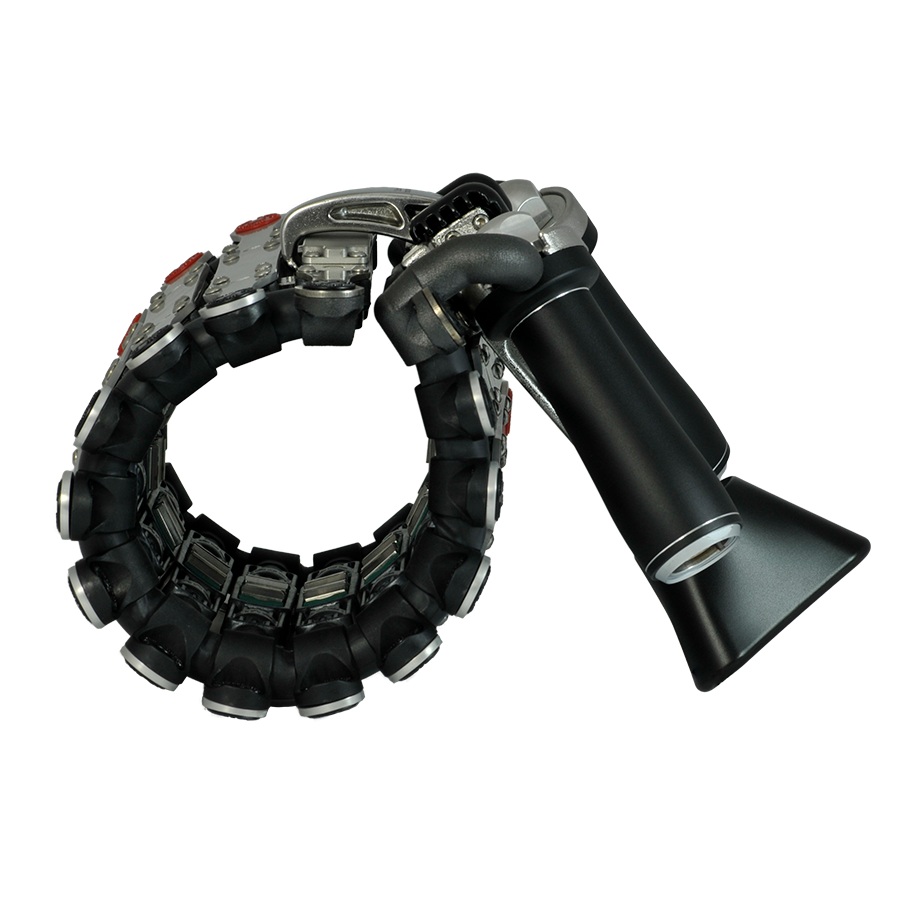

The ultra low profile ring or “Slinky” was specifically designed to be able to fit around pipes that have a very limited radial clearance, like those commonly found in culverts or pipe racks. Typically less than 25 mm of clearance is required to be able to mount the rings.

Due to their design, the low profile rings cover a smaller pipe size range than the traditional solid rings.

Standard low profile rings are configured for API nominal pipe sizes, within API 5L tolerance. These ultra low profile transducer rings are suitable for low clearance inspection of:

  • Bare / Painted Pipes
  • Sleeved Pipes
  • Insulated Pipes
Request a quote
Low Profile
Precision Cast Body

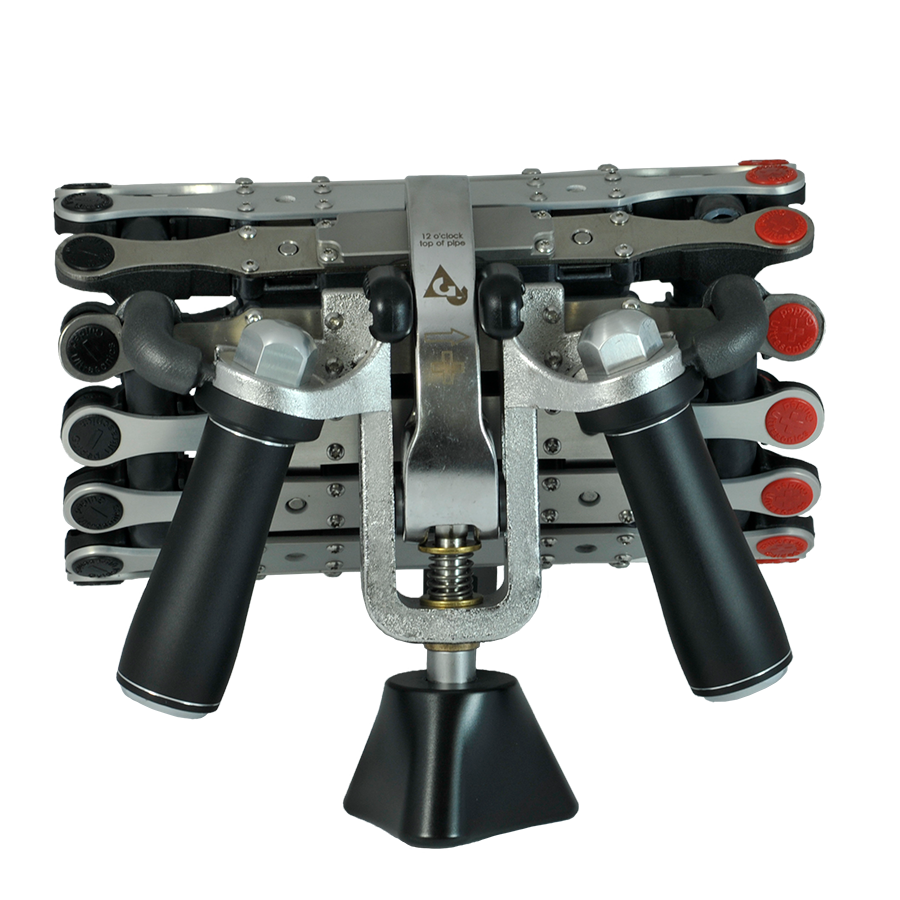

Ergonomic Handles
Green

2-row transducer modules with a single fixed spacing for high frequency inspection.

Blue

2-row transducer modules with a single fixed spacing for medium frequency inspection.

Red

2-row transducer modules with a single fixed spacing for low frequency inspection.

Specifications

Number of Channels
8 or 16
Nominal Pipe Size (NPS)
2” to 8” (DN 50 to 200)
Operating Temperature
-40°C to 120°C (-40°F to 248°F)
Radial Clearance
25 mm (1”)
Transduction System Compatibility
Wavemaker® G4 u0026 Full ( or Licensed ) G4mini
